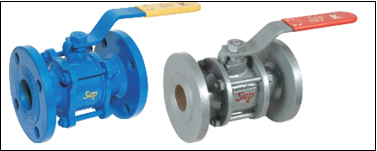

Smit Ball Valves 3pc - FE

Smit Ball Valves 3pc

Features
  • BS 5351/ASME B 16.34 / API 6D /API 608/MSS SP 72
  • Face to Face and End to End dimensions conform to ASME B 16.10 / BS 2080 /API 6D/ DIN
  • End flange dimensions conform to ASME B 16.5 / API 605 / BS 3293 / DIN
  • Butt weld end dimensions conform to ASME B 16.25
  • Fire tested design to API 607/API 6FA/BS 6755-II
  • Flexible lip seats compensate for wear and changes in pressure
  • Blow out proof stem construction
  • Antistatic devices ensure electrical continuity between ball, stem & body
  • Triple stem sealing
  • ISO 5211 top pad for simplified gear/actuator mounting
  • Valves meet the requirements of fugitive emission levels Shell category B as per MESC SPE 77/312
Smit Ball Valves 3pc
3PC FLOATING BALL FULL PORT
Options
  • One, two or three piece construction
  • For low temperature and cryogenic services (cold box and non-cold box applications extended bonnet as per BS 6364 available
  • Locking arrangement
  • Gear, Electrical, Hydraulic or Pneumatic actuator available
  • Soft seats are recommended for service temperature up to 260°C and for higher temperatures a metal to metal seating offered can be supplied
Valve Option
Smit Ball Valves 3pc
Materials
Part Name Material Option
Body ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Side Piece ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Ball ASTM A 351 CF8 / A 351 CF8M / A 182 F304 / A 182 F316 / A 182 F 6a
Body Seal PTFE / Graphoil / Spiral Wound SS 316 with Graphoil
Seats ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Stem ASTM A 182 F304 / A 182 F316 / A 182 F 6a
Gland Bush ASTM A 182 F304 / A 182 F316 / A 182 F 6a
Gland Packing Graphoil / PTFE
Stem Packing Graphite filled PTFE / Graphoil
Gland Nut Stainless Steel
Stem Nut Stainless Steel
Lever Carbon Steel with PVC
Disc Spring Carbon Steel
Studs / Bolts ASTM A 193 B7 / A 193 B7M / A 193 B8 / A 193 B8M / A 320 L7
Nut ASTM A 194 2H / A 194 B7M / A 194 B / A 194 8M / A 194 4/7
Ball Valve 3PC 150 Class
Size DN 15 20 25 40 50 65 80 100 150 200
L-RF 108 118 127 165 178 190 203 229 394 457
B 12.5 17 24 37 49 64 75 98 148 198
H(approx) 65 70 80 95 110 135 145 170 235 275
K 150 155 160 180 200 225 325 350 500 600
Wt. ( approx ) kg 3 4 5 8 12 22 28 45 83 158
Ball Valve 3PC 300 Class
Size DN 15 20 25 40 50 65 80 100 150 200
**L,L1-RW,BW 140 152 165 190 216 241 282 305 403 502
B 12.5 17 24 37 49 64 75 98 148 198
H(approx) 70 85 90 105 120 145 160 195 250 290
K 155 160 180 200 225 325 350 500 600 700
Wt. ( approx ) kg 3 5 7 14 17 30 35 58 110 175
